Sky map error


新しいトピックを投稿   トピックに返信    SonotaCo.JP Forum Index -> UFOCapture BBS in English
前のトピックを表示 :: 次のトピックを表示
投稿者 メッセージ
rando42



登録日: 2010.04.05
記事: 24

記事日時: Mon Feb 10, 2014 7:48 pm    記事の件名: Sky map error 引用付きで返信

Hi sonotaco

I got an curious error on the computer where I use ( from a short time ) ufoanalyser
the data of the cams are recorded on two computer, and every morning recorded on a toshiba computer used to analyse and stock all data.

every mask as a cross to show the center of the fov.

when I try to use ufoanalyser I see that the cross ( whiich are correctly centered on all bmp or jpg pictures recordedr with ufo2) have moved on the left.

so to réalign stars with the mask plot I ve to move the stars and I can't correctly adjust the links.
So I've installed UA2 on the both recording computer and the problem is over;
the croos is centered, and I can link without problèms.
what to you think ?
I ve try to delete and reinstall UA2 with the same results.

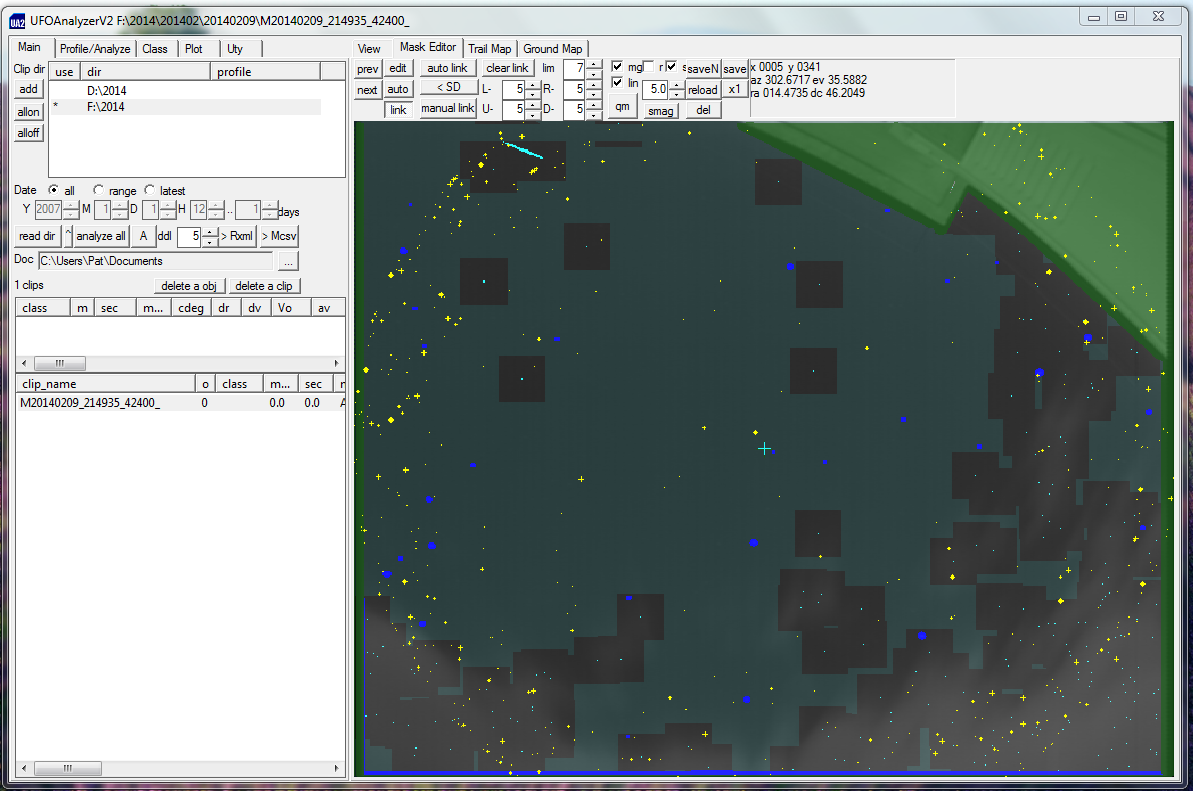

Joined the screen captures

Best regards



 説明:
 ファイルサイズ:  342.64 KB
 閲覧数:  4104 回




 説明:
 ファイルサイズ:  309.04 KB
 閲覧数:  4104 回



トップに戻る
ユーザーのプロフィールを表示   投稿者のウェブサイトに移動
SonotaCo
Site Admin


登録日: 2004.08.07
記事: 9986
所在地: 139.67E 35.65N

記事日時: Mon Feb 10, 2014 8:49 pm    記事の件名: Re: Sky map error 引用付きで返信

Hi
....

I not sure what is happening. Similar problem can happen by many reason.

But I believe that all problem or difference comes from the setting of Profile sheet.
So you don't need delete or re-install UA2 program, but just confirm and change the values on the Profile sheet of UA2.

Profile sheet is not shown in your png....
But the positions of blue cross mark (that shows the optical center of the FOV) of two samples above are different.
It must be caused by the difference of dx and dy setting of each Profile.

Please be aware that all profile values are quoted from M*xml that is made by UFOCaptureV2.
and added the values of UA2 default profile XML (including dx, dy) (if it is assigned on the profile column of the Clip dir list in Main sheet -- you are not using this!),
and stored to each M*A.XML file when once the analysis of the clip was done.
So, any problem will continue until M*A.XML is changed or deleted.

I recommend to make a default setting as profile of the camera, and set it to the profile column of the Clip dir list in Main sheet.
If it is done, the values will be set to all clip as the default when it is read in to UA2.
Please refer secion 3 especially step 11 on page 14 of UA2 manual for details.
トップに戻る
ユーザーのプロフィールを表示   投稿者のウェブサイトに移動
rando42



登録日: 2010.04.05
記事: 24

記事日時: Mon Feb 10, 2014 9:26 pm    記事の件名: 引用付きで返信

thanks for your quick reply !
You are right , in fact on the two computer connected on the cam Dx and Dy are setted to 0, but not on the toshiba, after resseted to 0 It's ok.
thanks again, I've just to wait a clear night to retry.
