NOSS 2-3 triplet


新しいトピックを投稿   トピックに返信    SonotaCo.JP Forum Index -> UFOCapture BBS in English
前のトピックを表示 :: 次のトピックを表示
投稿者 メッセージ
Lutz



登録日: 2006.11.24
記事: 7

記事日時: Sat Nov 25, 2006 2:57 am    記事の件名: NOSS 2-3 triplet 引用付きで返信

I am observing satellites for many years. My goal is positional measurement of satellites position in the sky to fit satellites elements for those who are not available.

Since 2 years I am using a Mintron 12V1C-EX low light level videocamera with mostly 50mmF1.8 lens and a hauppauge tv capture card. For super correct timing I am using a gps video time inserter. Every half frame of the video stream is timestamped.

I have had problems due to my old 700 Mhz computer. I was only able to capture 5 fps in PAL video stream. I have a try with UfoCapture, but the same trouble.

Now, I am using a Celeron D (3 Ghz) cpu. The computer and other equipment now capturing 25 fps and I lost no frame. I capture 768 x 576 PAL. With all funktions in UfoCapure my cpu load is around 70 percent.

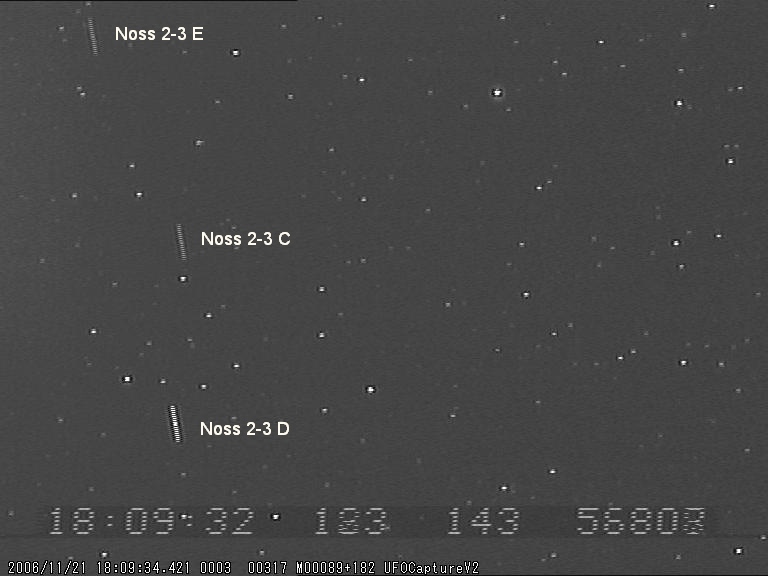

Below you see the NOSS 2-3 triplet. The leading NOSS 2-3 D is much brighter than the following 2 others. Field of view is about 7 x 5 degrees.

Best wishes
Lutz



 説明:
NOSS 2-3
 ファイルサイズ:  82.79 KB
 閲覧数:  8948 回



トップに戻る
ユーザーのプロフィールを表示
SonotaCo
Site Admin


登録日: 2004.08.07
記事: 9274
所在地: 139.66E 35.65N

記事日時: Sat Nov 25, 2006 9:39 am    記事の件名: Re: NOSS 2-3 triplet 引用付きで返信

Hi Lutz

Welcome, thank you for showing us a nice image.
I see Noss triplets for the first time. It is great and beautiful!!

Yes, UFOCapture requires very high cpu performance, the power is used for the dynamic masking of fixed stars(scintillation mask) to capture the faint objects that are dimmer than stars.
Your equipments seems very good for the observation of satellites.
Probably, you can get up to mag 5 or more dimmer moving objects.

There were some topics about satellites in this forum, such as the capture of stopping satellite's flash or very bright flare of ETS7 ....
Though they are written in Japanese, enjoy the images and movies below.
http://sonotaco.jp/forum/viewtopic.php?t=789
http://sonotaco.jp/forum/viewtopic.php?t=675
http://sonotaco.jp/forum/viewtopic.php?t=487
http://sonotaco.jp/forum/viewtopic.php?t=466
http://sonotaco.jp/forum/viewtopic.php?t=349
http://sonotaco.jp/forum/viewtopic.php?t=270
http://sonotaco.jp/forum/viewtopic.php?t=35
トップに戻る
ユーザーのプロフィールを表示   投稿者のウェブサイトに移動
SonotaCo
Site Admin


登録日: 2004.08.07
記事: 9274
所在地: 139.66E 35.65N

記事日時: Sat Nov 25, 2006 10:31 am    記事の件名: Re: NOSS 2-3 triplet 引用付きで返信

Lutz wrote:
My goal is positional measurement of satellites position in the sky to fit satellites elements for those who are not available.

Great!!
UFOAnalyzer can measure the position of the objects in the night sky. It may help you , though the automatic functions of it is optimized for meteors.
If you want to adjust the parameters of UFOAnalyzer for your system, send me a Mxxxxxxxx_xxxxxxM.bmp (the output of UFOCaptureV2) which contains many fixed stars, and the information below.
Longitude, Latitude, time-zone of the station, and the approx azimuth / elevation of camera.
I can calculate the parameter set for UFOAnalyzer that leads the minimum error of almost 0.2 pixel(almost 0.004deg for 50mm lens).
See the topic below.
http://sonotaco.jp/forum/viewtopic.php?t=1105
トップに戻る
ユーザーのプロフィールを表示   投稿者のウェブサイトに移動
Lutz



登録日: 2006.11.24
記事: 7

記事日時: Sat Nov 25, 2006 11:50 pm    記事の件名: 引用付きで返信

Hi SonotaCo,

thanks for help. I have send you a privat e-mail with my coordinates.

In this case, I show you another possibility to find the correct coordinates what a star picture show. It is a little easier for the user, but heavier for the programmer.
I have a sat tool called SATREC by Rainer Kracht.

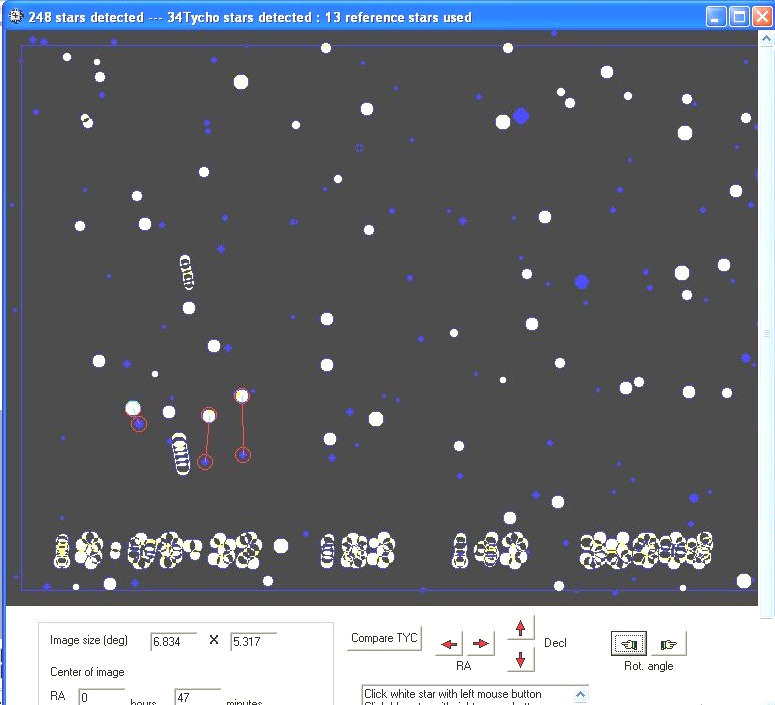

You have to type in the approx. field of view of the lens and the approx. center of field of view. (looks like UfoCapture) Then you loaded the tycho star atlas. You can see the star atlas stars as blue dots and the picture stars as white dots. (see detected.jpg)

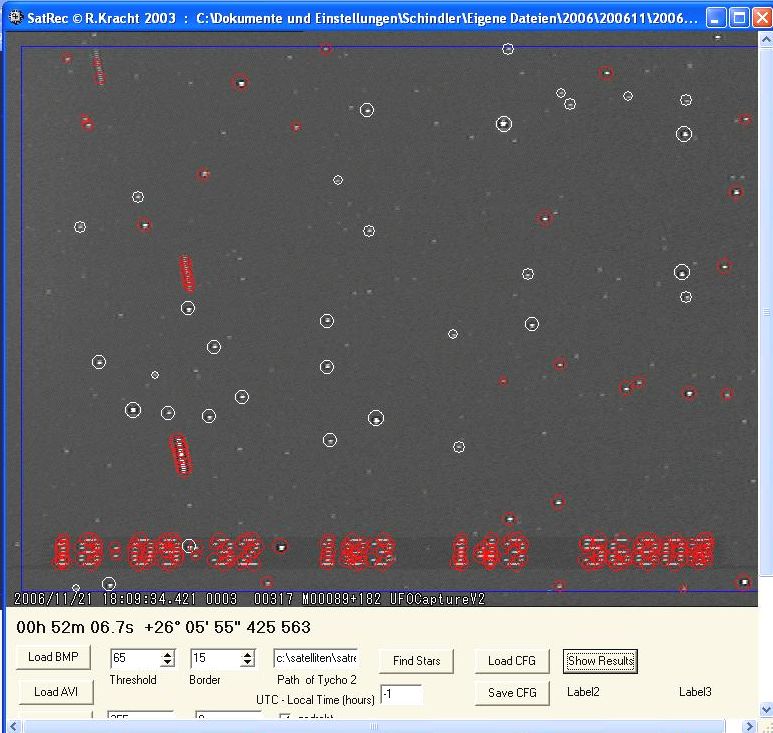

If you see a star pattern that matches, you have only to mark three blue and three white stars and the programm automaticly shows the the field of fiew in degrees and marks recognized stars with white circles and all other (not) stars with red circles. (see results.jpg)
This means, the programm automaticly overlaps with three reference stars and you have not to change many parameter of the photo to find high correctly overlapping.

Regards
Lutz



 説明:
detected
 ファイルサイズ:  88.92 KB
 閲覧数:  8910 回




 説明:
result
 ファイルサイズ:  92.95 KB
 閲覧数:  8910 回



トップに戻る
ユーザーのプロフィールを表示
SonotaCo
Site Admin


登録日: 2004.08.07
記事: 9274
所在地: 139.66E 35.65N

記事日時: Sun Nov 26, 2006 9:20 am    記事の件名: 引用付きで返信

Oh there is another tool Shocked . I did not know it. Thank you the info.
I am very glad to know that there is a programmer like me.
It seems very easy tool.

Well,,, I have announced that I am now making a new analysis program UFOAnalyzerV2.
UFOAnalyzerV2 has parameter optimization function and can adjust all parameters automatically.
It can handle 4th order distortion of lens, center offset, aspect ratio of pixels and can calculate residual error.
There are many new functions also Cool , please wait a few months Razz .

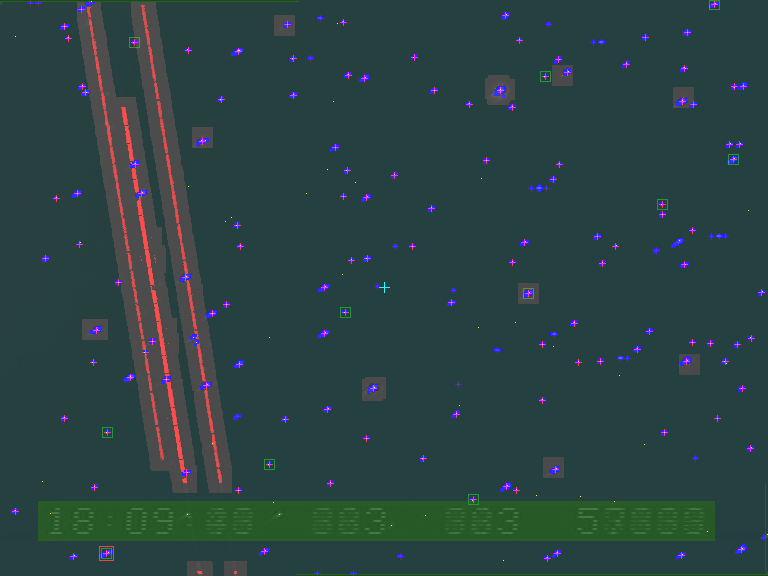

 説明:
sample of the result of V2
 ファイルサイズ:  108.59 KB
 閲覧数:  8888 回



トップに戻る
ユーザーのプロフィールを表示   投稿者のウェブサイトに移動
Lutz



登録日: 2006.11.24
記事: 7

記事日時: Mon Nov 27, 2006 5:37 am    記事の件名: 引用付きで返信

Hi SonotaCo,

this was only an example.
When I captured a sat, I changed the camera FOV to wait for the next sat on a given place in the sky. I have to determinate every FOV for all clips I captured during a session. The camera is not fixed due to the small FOV. And my goal sats are everywere in the night sky.


Best wishes

Lutz
トップに戻る
ユーザーのプロフィールを表示
SonotaCo
Site Admin


登録日: 2004.08.07
記事: 9274
所在地: 139.66E 35.65N

記事日時: Mon Nov 27, 2006 11:26 am    記事の件名: 引用付きで返信

Lutz wrote:
.
When I captured a sat, I changed the camera FOV to wait for the next sat on a given place in the sky. I have to determinate every FOV for all clips I captured during a session. The camera is not fixed due to the small FOV. And my goal sats are everywere in the night sky.

Oh, yes I know. I had been doing just like you in several years ago when TLEs were more opened to public.
I have even tried to take a close up video of IIS using computer controlled satellite tacker and f=1500mm telescope.
There are a lot of theme that is possible but not tried. They are stacked on my desk like a mountain.
The automatic geocentric orbit calculation is one of it. But there is many things to do before it. May be we can enjoy for many years or decades.
